Nous sommes spécialisés dans les adaptateurs et raccords hydrauliques SAE/BSP/METRIC.

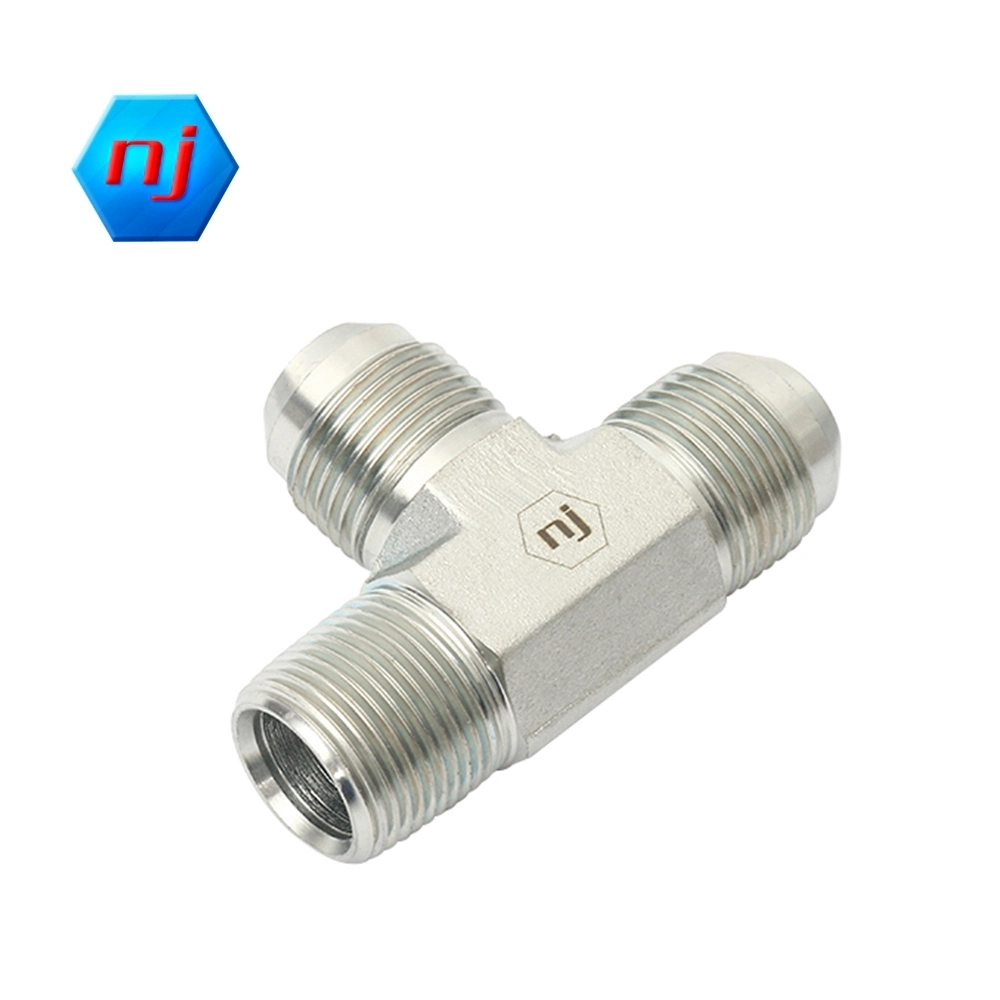

Adaptateur hydraulique en T mâle JIC-mâle NPT 2605
Adaptateur hydraulique en T MJ-MP de haute qualité en acier au carbone 2505 avec zingage Cr3+.
Filetage 2 Type : NPT mâle
Filetage 3 Type : Mâle JIC
Avantages du produit
●
Professionnel
l'équipe d'ingénieurs accueille le projet OEM.
●
Stock énorme
20000+ pour les adaptateurs et les raccords.
●
Livraison rapide
en 7 jours.
●
Petite quantité de
les stocks sont pris en charge.
● L logo aser peut être fabriqués dans les produits.
Spécifications du produit
T-shirt MJ-MP
NJ-
2605 Série
AJJN
PART NO.SIZE | TUBE 0.D. | B1 SAE 37 | A3 NPTF | B3 SAE 37 | B1 DRILL | A2 DRILL | B3 DRILL | M1 LGTH | L LGTH | M2 LGTH | Y FLATS |
NJ-2605-03-02-03-FG | 3/16 | 3/8-24 | 1/8-27 | 3/8-24 | 0.125 | 0.188 | 0.125 | 0.83 | 0.72 | 0.83 | 0.438 |
NJ-2605-04-02-04-FG | 1/4 | 7/16-20 | 1/8-27 | 7/16-20 | 0.172 | 0.188 | 0.172 | 0.89 | 0.78 | 0.89 | 0.438 |
NJ-2605-04-04-04-FG | 1/4 | 7/16-20 | 1/4-18 | 7/16-20 | 0.172 | 0.281 | 0.172 | 1.05 | 1.09 | 1.05 | 0.562 |
NJ-2605-05-02-05-FG | 5/16 | 1/2-20 | 1/8-27 | 1/2-20 | 0.234 | 0.188 | 0.234 | 0.95 | 0.78 | 0.95 | 0.562 |
NJ-2605-05-04-05-FG | 5/16 | 1/2-20 | 1/4-18 | 1/2-20 | 0.234 | 0.281 | 0.234 | 1.05 | 1.09 | 1.05 | 0.562 |
NJ-2605-06-02-06-FG | 3/8 | 9/16-18 | 1/8-27 | 9/16-18 | 0.297 | 0.188 | 0.297 | 1.06 | 0.90 | 1.06 | 0.562 |
NJ-2605-06-04-04-FG | 3/8 | 9/16-18 | 1/4-18 | 7/16-20 | 0.297 | 0.281 | 0.172 | 1.06 | 1.09 | 1.05 | 0.562 |
NJ-2605-06-04-06-FG | 3/8 | 9/16-18 | 1/4-18 | 9/16-18 | 0.297 | 0.281 | 0.297 | 1.06 | 1.09 | 1.06 | 0.562 |
NJ-2605-06-06-06-FG | 3/8 | 9/16-18 | 3/8-18 | 9/16-18 | 0.297 | 0.406 | 0297 | 1.14 | 1.22 | 1.14 | 0.750 |
NJ-2605-06-08-06-FG | 3/8 | 9/16-18 | 1/2-14 | 9/16-18 | 0.297 | 0.531 | 0.297 | 1.22 | 1.47 | 1.22 | 0.875 |
NJ-2605-08-04-08-FG | 1/2 | 3/4-16 | 1/4-18 | 3/4-16 | 0.391 | 0.281 | 0.391 | 1.25 | 1.22 | 1.25 | 0.750 |
NJ-2605-08-06-06-FG | 1/2 | 3/4-16 | 3/8-18 | 9/16-18 | 0.391 | 0.406 | 0.297 | 1.25 | 1.22 | 1.14 | 0.750 |
NJ-2605-08-06-08-FG | 1/2 | 3/4-16 | 3/8-18 | 3/4-16 | 0.391 | 0.406 | 0.391 | 1.25 | 1.22 | 1.25 | 0.750 |
NJ-2605-08-08-06-FG | 1/2 | 3/4-16 | 1/2-14 | 9/16-18 | 0.391 | 0.531 | 0.297 | 1.25 | 1.47 | 1.22 | 0.875 |
NJ-2605-08-08-08-FG | 1/2 | 3/4-16 | 1/2-14 | 3/4-16 | 0.391 | 0.531 | 0.391 | 1.33 | 1.47 | 1.33 | 0.875 |
NJ-2605-08-12-08-FG | 1/2 | 3/4-16 | 3/4-14 | 3/4-16 | 0.391 | 0.719 | 0.391 | 1.42 | 1.59 | 1.42 | 1.062 |
NJ-2605-10-08-10-FG | 5/8 | 7/8-14 | 1/2-14 | 7/8-14 | 0.484 | 0.531 | 0.484 | 1.45 | 1.47 | 1.45 | 0.875 |
NJ-2605-10-12-10-FG | 5/8 | 7/8-14 | 3/4-14 | 7/8-14 | 0.484 | 0.719 | 0.484 | 1.54 | 1.59 | 1.54 | 1.062 |
NJ-2605-12-08-12-FG | 3/4 | 1-1/16-12 | 1/2-14 | 1-1/16-12 | 0.609 | 0.531 | 0.609 | 1.66 | 1.59 | 1.66 | 1.062 |
NJ-2605-12-12-08-FG | 3/4 | 1-1/16-12 | 3/4-14 | 3/4-16 | 0.609 | 0.719 | 0.937 | 1.66 | 1.59 | 1.42 | 1.062 |
NJ-2605-12-12-12-FG | 3/4 | 1-1/16-12 | 3/4-14 | 1-1/16-12 | 0.609 | 0.719 | 0.609 | 1.66 | 1.59 | 1.66 | 1.062 |
NJ-2605-14-12-14-FG | 7/8 | 1-3/16-12 | 3/4-14 | 1-3/16-12 | 0.719 | 0.719 | 0.719 | 1.80 | 1.69 | 1.80 | 1.312 |
NJ-2605-16-12-16-FG | 1 | 1-5/16-12 | 3/4-14 | 1-5/16-12 | 0.844 | 0.719 | 0.844 | 1.81 | 1.78 | 1.81 | 1.312 |
NJ-2605-16-16-16-FG | 1 | 1-5/16-12 | 1-11-1/2 | 1-5/16-12 | 0.844 | 0.938 | 0.844 | 1.81 | 1.97 | 1.81 | 1.312 |
NJ-2605-20-16-20-FG | 1-1/4 | 1-5/8-12 | 1-11-1/2 | 1-5/8-12 | 1.078 | 0.938 | 1.078 | 2.06 | 2.35 | 2.06 | 1.625 |
NJ-2605-20-20-16-FG | 1-1/4 | 1-5/8-12 | 1-1/4-11-1/2 | 1-5/16-12 | 1.078 | 1.250 | 0.844 | 2.06 | 2.38 | 2.01 | 1.625 |
NJ-2605-20-20-20-FG | 1-1/4 | 1-5/8-12 | 1-1/4-11-1/2 | 1-5/8-12 | 1.078 | 1.250 | 1.075 | 2.06 | 2.38 | 2.06 | 1.625 |
NJ-2605-24-24-24-FG | 1-1/2 | 1-7/8-12 | 1-1/2-11-1/2 | 1-7/8-12 | 1.312 | 1.500 | 1.312 | 2.33 | 2.64 | 2.33 | 1.875 |
NJ-2605-32-32-32-FG | 2 | 2-1/2-12 | 2-11-1/2 | 2-1/2-12 | 1.781 | 1.938 | 1.781 | 3.06 | 3.00 | 3.06 | 2.500 |
Application du produit
